Product Description

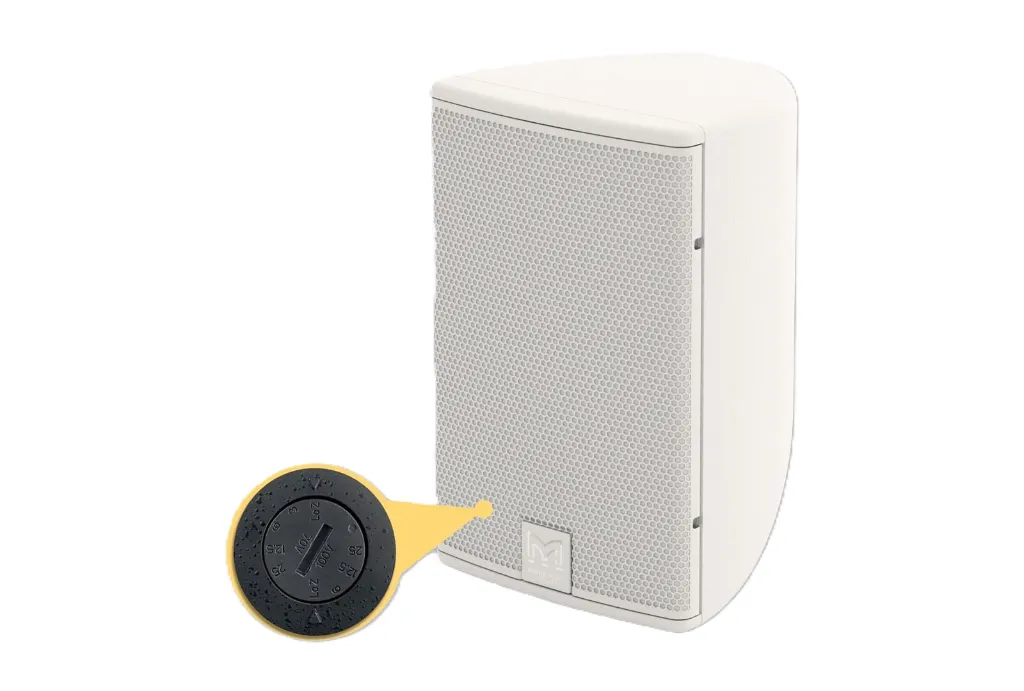

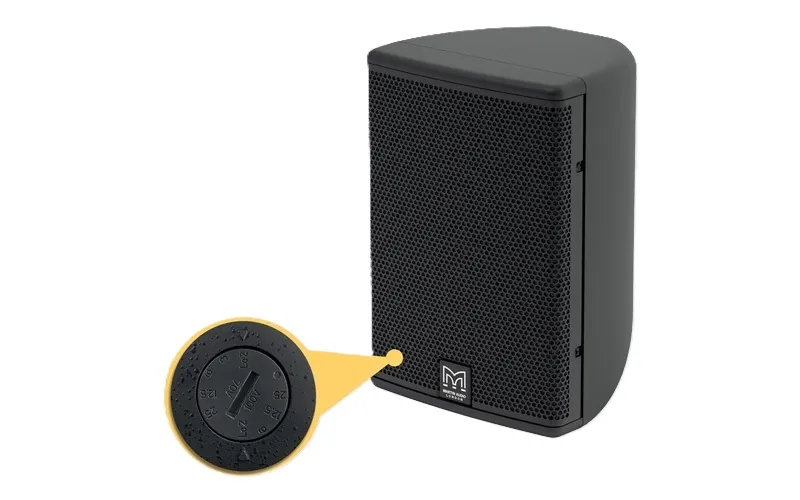

The CDD6TX-WR-MG is a marine-grade and weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can reproduce surprisingly high levels of music program and can also be used as a fill system in conjunction with larger CDD Series. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.
Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
- The Marine Grade CDD is a customised version of our standard Current Differential Device, engineered for reliable earth leakage protection in harsh marine and coastal environments. Available in 8" 12", and 15", including TX variants, this unit offers enhanced corrosion resistance and weatherised construction for long-term durability.
- Designed for vessels, marinas, offshore platforms, and coastal installations, the Marine Grade and Weatherised combinations provide added protection against moisture, salt spray, humidity, and demanding outdoor conditions — without compromising performance.
- Suitable for marine, industrial, and outdoor applications where durability and safety are essential.
Specifications
| color | Black, White, RAL |
| protection | Weatherised, Marine Grade |
