Specifications
|
| Projector type |
LCD |
| Light output |
8,200 lm |
| Resolution |
WUXGA (1920 x 1200 pixels) |
| Contrast ratio |
3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI™ signal input) |
| Terminals |
3 x HDMI In (HDCP2.3)
1 x D-sub 15pin (5 x RGB, Computer In)
1 x D-sub 15pin (5 x RGB, Monitor Out)
1 x M3 stereo mini-jack (Audio In)
1 x M3 Stereo mini-jack (Audio Out)
1 x Digital Link (HDBaseT)
1 x LAN: RJ-45
1 x USB (DC Out)
1 x RS232: DB-9pin (Serial In / Multi Sync In)
1 x RS232: DB-9pin (Multi Sync Out)
1 x RS232: DB-9pin (Remote In)
1 x M3 Mini Jack (Remote In) |
| Dimensions (W x H x D) |
561 x 224 x 439 mm |
| Weight |
Approx. 18.6 kg |
| Operation noise |
34 dB (NORMAL/ECO), 27 dB (QUIET) (TBD) |
| Max Power Consumption (AC 200–240 V) |
445 W (TBD) |
| Supplied Accessories |
Wireless/wired remote control unit (x 1)
Power cord (3.0 m x 1) (x 2 for Europe and Asia model)
Batteries for remote control (R03/AAA type x 2)
Lens fixing screw (x 4) |
Optional Accessories
|
| Lens |
Fixed-focus lens |
ET-ELW21 |
| Lens |
Zoom lens |
ET-ELW22 |
| Lens |
Zoom lens |
ET-ELU20 |
| Lens |
Zoom lens |
ET-ELW20 |
| Lens |
Zoom lens |
ET-ELS20 *ET-ELS20 is equivalent of supplied lens |
| Lens |
Zoom lens |
ET-ELT22 |
| Lens |
Zoom lens |
ET-ELT23 |
| Attachment for ceiling mount bracket |
ET-PKE301B |
| Ceiling Mount Bracket |
for high ceilings |
ET-PKD120H |
| Ceiling Mount Bracket |
for low ceiling |
ET-PKD120S |
| Ceiling Mount Bracket |
with 6-axis adjustment for high ceilings |
ET-PKD130H |
| DIGITAL LINK Switcher |
ET-YFB200G |
| Digital Interface Box |
ET-YFB100G |
| Early Warning Software |
ET-SWA100 Series |
| Auto Screen Adjustment Upgrade kit (preactivated) |
ET-CUK10/CUK10P |
| Wireless Presentation System PressIT |
TY-WPS1 |
Select the Model
Model
|
Description
|
| PT-MZ882BE |
3LCD, Installation Projector, WUXGA, 8,200 ANSI Lumens, Black Cabinet, with Supplied Lens of Throw Ratio: 1.7-2.8:1 |

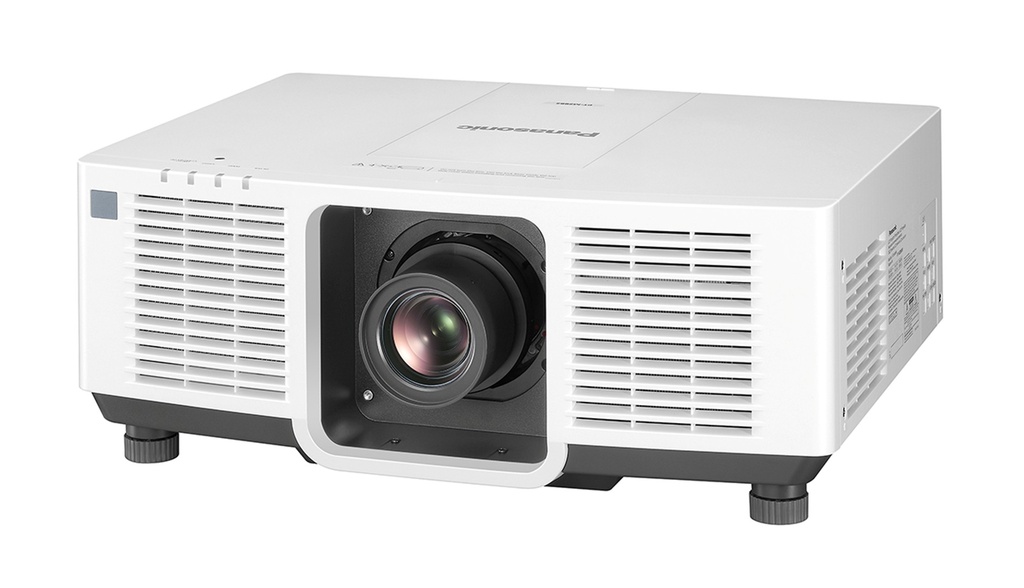

| PT-MZ882WE |
3LCD, Installation Projector, WUXGA, 8,200 ANSI Lumens, White Cabinet, with Supplied Lens of Throw Ratio: 1.7-2.8:1 |
