Product Description

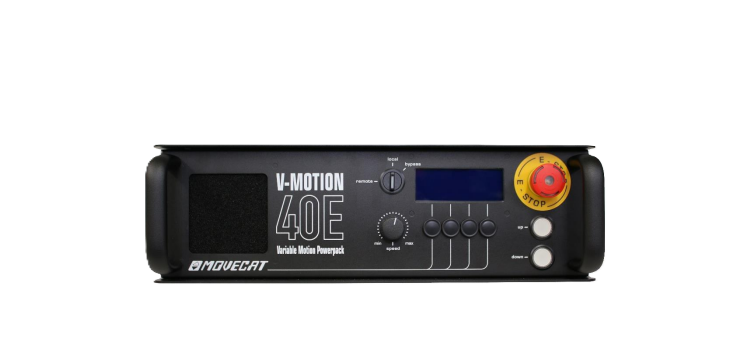

The V‑Motion 40‑E‑SIL3 is a Variable Motion Powerpack designed by Movecat for use with V‑series hoist drives (VMK, VMW, VMB). It enables high‑precision, safe, variable‑speed kinetic control for stage, studio, and event environments.
It is engineered to comply with BGV C1 and optionally EN 61508 SIL3, making it suitable for overhead scenic movement where the highest safety standards are required.
The unit combines intelligent motion control, safety monitoring, and integrated filtering systems, allowing smooth, synchronized, and safe hoist operation within the I‑Motion network.
Features
1. SIL3‑Certified Safety Architecture
- Optional second processor axis board provides EN 61508 SIL3 safety level.
- Suitable for overhead scenic runs, where people may be underneath moving loads.
2. Designed for V‑Series Drives
- Configured for 4.0 kW drive systems (V‑Motion 40).
- Full compatibility with Movecat V‑series hoists (VMK / VMW / VMB).
3. Intelligent Kinetic Control
- Supports continuous variable speed from 0 to maximum.
- Provides full torque at zero speed and during direction changes.
- Enables seamless direction reversal without brake engagement.
4. Advanced Monitoring & Diagnostics
- A large backlit LCD displays:
- Position
- Load
- Operating states
- Hoist parameters
5. Built‑In Safety Circuits
- Integrated:
- Overload & underload protection
- Operating & emergency limit switches
- Contactor switches
- All run commands are validated and evaluated to ensure safe execution.
6. I‑Motion Network Integration
- Fully compatible with Movecat’s I‑Motion control ecosystem.
- Up to 120 devices can be linked for synchronized scenic movement.
- Supports:
- Way‑synchronous runs
- Time‑synchronous group movements
- Complex automated transformations
7. User‑Friendly Local Operation
- Easy installation and service operations via:
- Up/Down buttons
- Analog speed control
- No external programming tools required for basic configuration.
8. Integrated Filters & EMC Compliance
- Built-in motor, line, and radio filters reduce leakage currents.
- Enables reliable operation with RCD Type B 30 mA breakers.
- Complies with EMC & VDE guidelines (up to 50–70 m distance from drive).
