Product Description

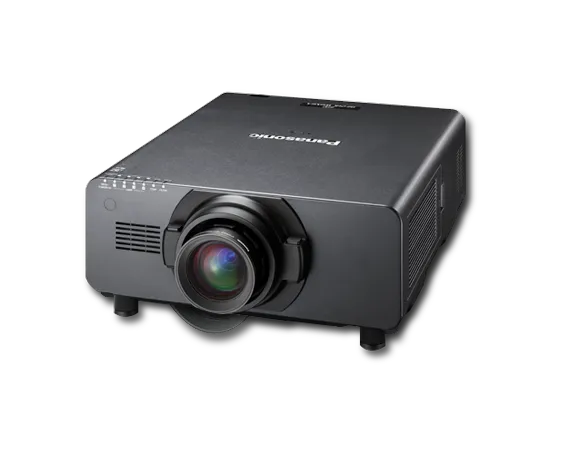

The Panasonic PT-DZ21KE is a flagship 3-Chip DLP™ projector designed for the most demanding large-venue applications. Delivering an astounding 20,000 lumens of brightness in a remarkably compact body, it has become the global benchmark for rental, staging, and high-impact projection mapping.
Splendid Image Quality from a Compact Body
20,000 Lumens of Power: Panasonic’s unique Quad-Lamp System, using high-output UHM lamps, allows for extreme brightness while maintaining a small footprint and low operating noise.
WUXGA Resolution: Native 1920 x 1200 resolution ensures every detail is captured with lifelike clarity.
Dynamic Iris: A scene-linking aperture mechanism achieves a 10,000:1 contrast ratio, producing deeper blacks and more detailed textures without sacrificing peak brightness.
Detail Clarity Processor 3: This proprietary circuit optimizes sharpness across all frequency bands, providing natural, lifelike expression to high-definition video.
High Reliability and Low TCO
Failsafe Quad-Lamp System: The four-lamp design allows the show to go on even if a lamp fails. Lamp Relay Mode enables 24/7 continuous projection by alternating between lamps.
Advanced Liquid Cooling: A hermetically sealed liquid cooling system directly cools the DLP™ chips, allowing the projector to operate in ambient temperatures up to 45°C (113°F).
Eco Filter Technology: The reusable Eco Filter provides up to 12,000 hours of protection, significantly reducing maintenance frequency and total cost of ownership (TCO).
System and Installation Flexibility
360-Degree Mounting: The unit can be rotated 360° vertically, allowing for creative projection onto floors, ceilings, or uniquely angled surfaces.
Multi-Screen Support: Built-in Edge Blending, Color Matching, and Multi-Projector Brightness Control allow for seamless, large-scale panoramic displays without external hardware.
Geometric Adjustment: Easily adjust images for projection onto spherical, cylindrical, or other specially shaped screens using only the remote control.
Professional Connectivity: Equipped with dual SDI (3G/HD/SD), DVI-D, HDMI, and 3D timing terminals.
Technical Specifications
| Feature | Specification |
| Brightness | 20,000 ANSI Lumens |
| Resolution | WUXGA (1920 x 1200) |
| Technology | 3-Chip DLP™ |
| Contrast Ratio | 10,000:1 (Full On/Off) |
| Light Source | 4 x 465W UHM Lamps (ET-LAD510 Series) |
| Weight | Approx. 43 kg (94.8 lbs) |
